رله ضربه ای ۱۶ آمپر

رله ضربه ای اشنایدر برای کنترل سیستم روشنایی راه پله ها و محل هایی که مصرف کننده باید از چندین محل خاموش و یا روشن شود و همچنین برای مدار فرمان قطع و وصل یک موتور الکتریکی توسط یک شستی استفاده می شود

1,000,000 تومان دیگر تا ارسال رایگان 🚚

13 نفر در حال مشاهده محصول هستند!

توضیحات

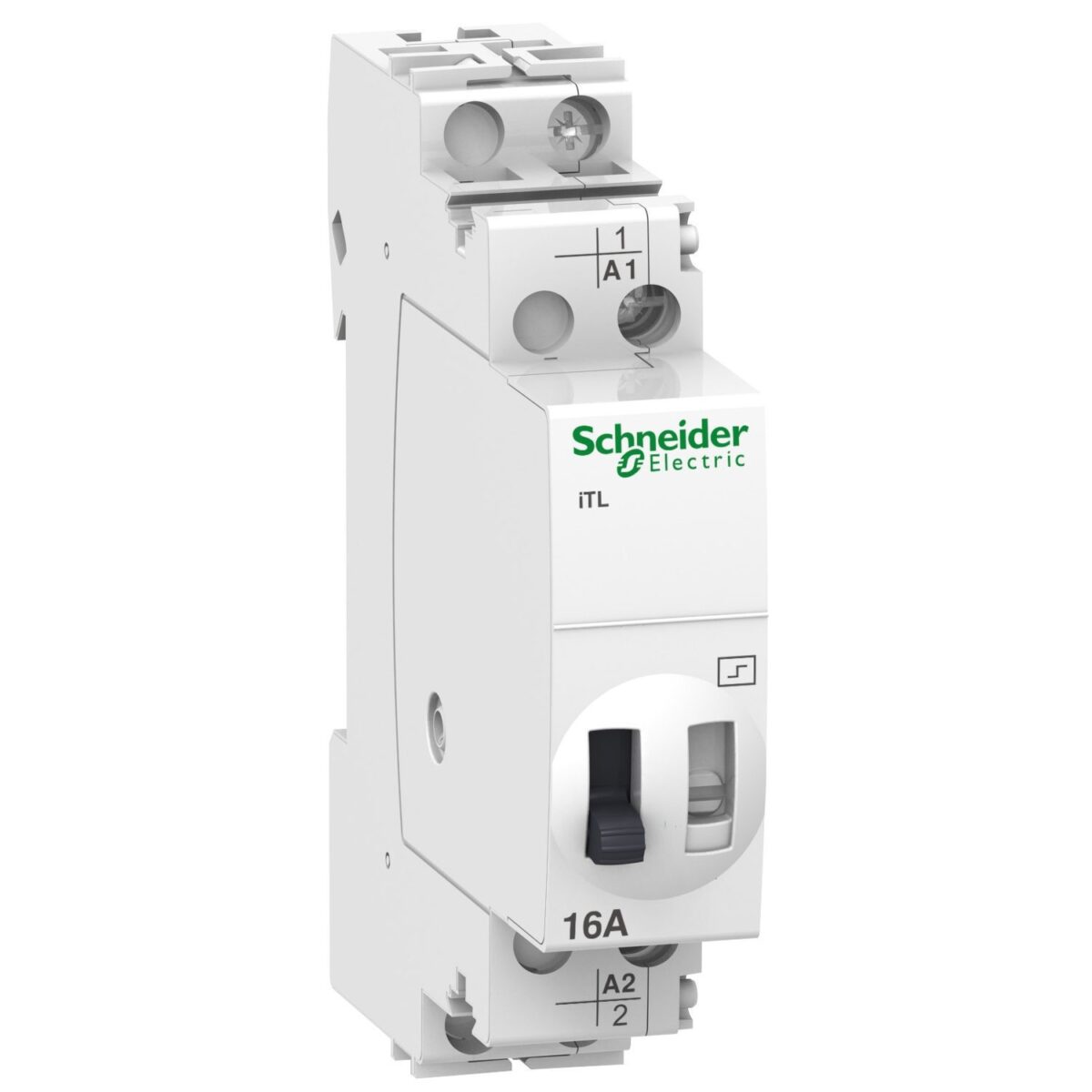

رله ضربه ای ۱۶ آمپر تک پل با بوبین

A9C30211

Impulse relay iTL – 1P – 1NO – 16A – coil 24 VDC – 48 VAC 50/60Hz

Main
range of product	Acti 9
product name	Acti 9 iTL
product or component type	Impulse relay
device short name	ITL
device application	Standard
Poles	1P
pole contact composition	1 NO
[In] rated current	16 A
network type	AC
[Uc] control circuit voltage	48 V AC 50/60 Hz 24 V DC

Complementary
network frequency	50/60 Hz
[Ue] rated operational voltage	250 V AC 50/60 Hz
control type	Coil deconnection Remote and manual control
control signal type	Impulse
switching frequency	5 switching operations/minute 100 switching operations/day
impulse duration	50 ms…1 s
remote control type	Illuminated push-button 3 mA
local signalling	ON/OFF indication
mounting mode	Fixed
mounting support	DIN rail
9 mm pitches	2
height	84 mm
width	18 mm
depth	60 mm
electrical durability	AC-21: 200000 cycles AC-22: 100000 cycles
connections – terminals	Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² rigid with cable end Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible Power circuit: tunnel type terminals 1 cable(s) 1.5…4 mm² flexible with ferrule
wire stripping length	11 mm
tightening torque	1 N.m
range compatibility	iATEt iATLc iATLc+s iATLm iATLs iETL iTL 16 iATLc+c

Environment
standards	EN 669-1 EN 669-2-2
product certifications	GOST
quality labels	CEBEC KEMA IMQ NF VDE
noise level	60 dB
IP degree of protection	IP20 conforming to IEC 60529 (on opening) IP40 conforming to IEC 60529 (in enclosure)
pollution degree	3
tropicalisation	2
relative humidity	95 % at 55 °C
ambient air temperature for operation	-20…50 °C
ambient air temperature for storage	-40…70 °C
